GB2009! TOP OF THE RANGE 300cc FARM QUAD
2WD Model OUT OF STOCK$4290! ....RETAILS $5500+
4WD Model ONLINE PRICE$4790! ....RETAILS $7000+
NEW!! 500cc & 700cc 4WD Farm Quads AVAILABLE NOW!!
Limited Stock Reserve your colour Now AUSTRALIA WIDE SHIPPING!!
NEW 300cc, 500cc & 700cc ARRIVING!!---- THESE WONT LAST!!
300 4x4 $4790! 500 4x4 Quad $6950! 700 4x4 Quad$7950
Powerful 300cc Watercooled Engine AMAZING VALUE!! TOP QUALITY!!
NEW!! 500cc & 700cc 4WD Farm Quads ->MORE INFO!
5004x4
Farm Quad$6950! 7004x4 Farm
Quad $7950
->
CLICK HERE for MORE INFO on the 500/700cc 4x4 Quads
-----------------------------------------------------------
6 MONTHS PARTS WARRANTY!!*
Beware of other sellers
offering only a 1 month warranty!!!
Competes with Higher End Japanese Quads for 1/3 the price!!
The
Crusher
300cc is powered by a huge 300cc water cooled 4 stroke single cam
engine capable of reaching speed of over 90kph.
Packed with
thumping 24HP this 2x4 utility quad will tackle any gullys or hills
with ease. It features a heavy duty 2 speed gear box with reverse,
supported by a SHAFT drive CVT transmission. To handle the toughest,
most rugged conditions, the Crusher 300cc comes with fully
adjustable suspension, front and rear hydraulic disc brakes, and huge
off road knobby tyres. It has braced front and rear carry racks, and if
u need more carrying capacity we've also included a TOW BAR and BALL,
which you can hitch a trailer to. For pulling power we've added a
2000lbs WINCH, operated by a switch conveniently located on the handle
bar. Side mirrors come standard, and the digital display clearly
indicates your speed, gear, time, odometer and temperature readings.
For added bling, the 300cc Crusher comes with chromed out ALLOY
rims, which wont rust out over time. Its high powered front headlights
and twin tail lights, and turn signal indicators, allow you to ride at
night easily.
If there is a job that needs to be done, the fully equipped Crusher
300cc will get it done with ease.
FEATURES
HIGH QUALITY 300cc YAMAHA LINHAI ENGINE
-
See more details about the Yamaha
Linhai Joint Venture here
- Powerful 24 HP
(HorsePower) Watercooled Motor
- Automatic 2000lbs
Electric Winch (activated from handlebars)
- Towbar & Ball
- Digital Speedo - Speed, distance travelled, RPM, Fuel gauge, temp, hrs use
- Full Alloy 12" Rims - That Don't Rust!
- CVT Auto Transmission (Continuous Variable Transmission)
- Sealed Shaft Drive
- Hi & Low Range + Reverse
- Flick of the switch 2WD
or 4WD (4WD model only)
- 12V Lighter Socket
- Parts/Service Manuals, Largest Spare parts backup
- + Heaps More (see all features below)
- NEW FEATURE!
Fully Independent Front & Rear Suspension (4WD)
Have Questions? ... Want to
order? ->ContactUS
PICTURES
Colours
available in
GREEN, RED, BLACK, & BLUE
->Click Here for Pics of 2WD 08 model (without IRS rear)
->Click Here for Pics of 2WD 08 model (without IRS rear)
NEW! 2009 MODEL UPGRADES
HEAVY DUTY PVC PLASTIC RACK COVERINGS, NEW DESIGN ALLOY 12" RIMS + BARK BUSTERS
NEW! 2009 REAR END
4WD MODEL NOW with FULLY INDEPENDENT REAR SUSPENSION & TWIN REAR SHOCKS
Better
Handling over rough terrain, Higher loading capacity + Higher Rear
Ground Clearance
COMPARE THE HUGE SIZE OF THE CRUSHER 300cc QUAD
Here's the 300cc Crusher next to another Full Size rated Adult 250cc
FARM QUAD - No
Comparison!
300cc Quad with Full
Size Adult (5ft 10in/ 85kgs)
LARGE COMFY SEAT + HUGE
HEAVY DUTYRACKS
FULL COMPREHENSIVE PARTS/OWNERS/INSTALLATION MANUALS
Exploded Views with every part numbered for quick
reference when needing spares!!
Emergency Toolkit included
SPECIFICATIONS (4WD Model)
| Engine | ||
|---|---|---|
| Engine Model | Genuine Generation 2 - High Output - 300cc Engine All Wheel Drive | |
| Engine Type | 4 Stroke - Single Cylinder - Water Cooled | |
| Brand | Atomik | |
| Cooling System | Water Cooled | |
| Compression | 10.3:1 | |
| Bore/Stroke | 72.5mm x 66.8mm | |
| Maximum Output KW/HP | N/A | |
| Maximum Power / Rotating Speed | 16kW / 7000rpm | |
| Rear Sprocket Tooth Count | N/A | |
| Idle Speed | N/A | |
| Starting System | Electric Start | |
| Clutch Type | N/A | |
| Transmission | 2 SPEED Auto (Hi & Low) + Reverse | |
| Carburetor | N/A | |
| Ignition | CDI | |
| Fuel Type | High Octane Unleaded Fuel (92 or higher) | |
| Engine Oil Grade | Non Synthetic 10W/40SF 4 Stroke Engine Oil | |
| Magneto Type | Electronic Ignition System | |
| Intake/Exhaust | N/A | |
| Final Drive | Shaft Drive CVT Transmission | |
| Spark Plug | Genuine Quality Spark Plug | |
| Material | ||
| Frame | Black High Strength Steel | |
| Swingarm | Black High Strength Steel | |
| Controls | Alloy | |
| Triple Clamps | Black High Strength Steel | |
| Handlebar | Black High Strength Steel | |
| Handlebar Grip | Soft High Grip Rubber | |
| Fuel Filter | N/A | |
| Front | Rear | |
| Rim | Polished Chrome Alloy | Polished Chrome Alloy |
| Tyre | 25 x 8.00 - 12 | 25 x 10.00 - 12 |
| Suspension | Double Wishbone | Double Wishbone (Independent Suspension) |
| Brakes | Disc Brakes | Disc Brakes |
|
|
|||||||||||||||||||||||||||||||||||||||
*varies depending on rider weight & road condition
# Will fit assembled in a 7ft X 4ft trailer or a 6ft X 4ft trailer with tailgate down
| Winch | ||
|---|---|---|
| Power Supply | 12V | |
| Rolling Capacity | 6000lbs | |
| Pulling Capacity | 2000lbs | |
| Cable Length | 30 Feet | |
| Maximum Boat Size | 18 Feet | |
| Maximum Boat Weigth | 5000lbs | |
SHIPPING COSTS
Capital Cities:
|
Regional Areas:
|
||||||||||||||||||||||||||||||||||||||||||||||||
| *** For Regional Northern Territory postcode, please contact us | |||||||||||||||||||||||||||||||||||||||||||||||||
1 x 300 4x4 Available to INSPECT IN SYDNEY!!
Order 2WD Today for ONLY $4290! + Shipping
Two Wheel Drive Model Crusher 300cc Farm Quad ATV
Order 4WD Today for ONLY $4790! + Shipping
Four Wheel Drive Model Crusher 300cc Farm Quad ATV
NEW!!500cc & 700cc 4WD Farm Quads AVAILABLE NOW!!500cc 4x4 Quad$6950! 700cc4x4 Quad$7950! Limited Stock Reserve One Now
Have Questions? ... Want to order? ->ContactUS

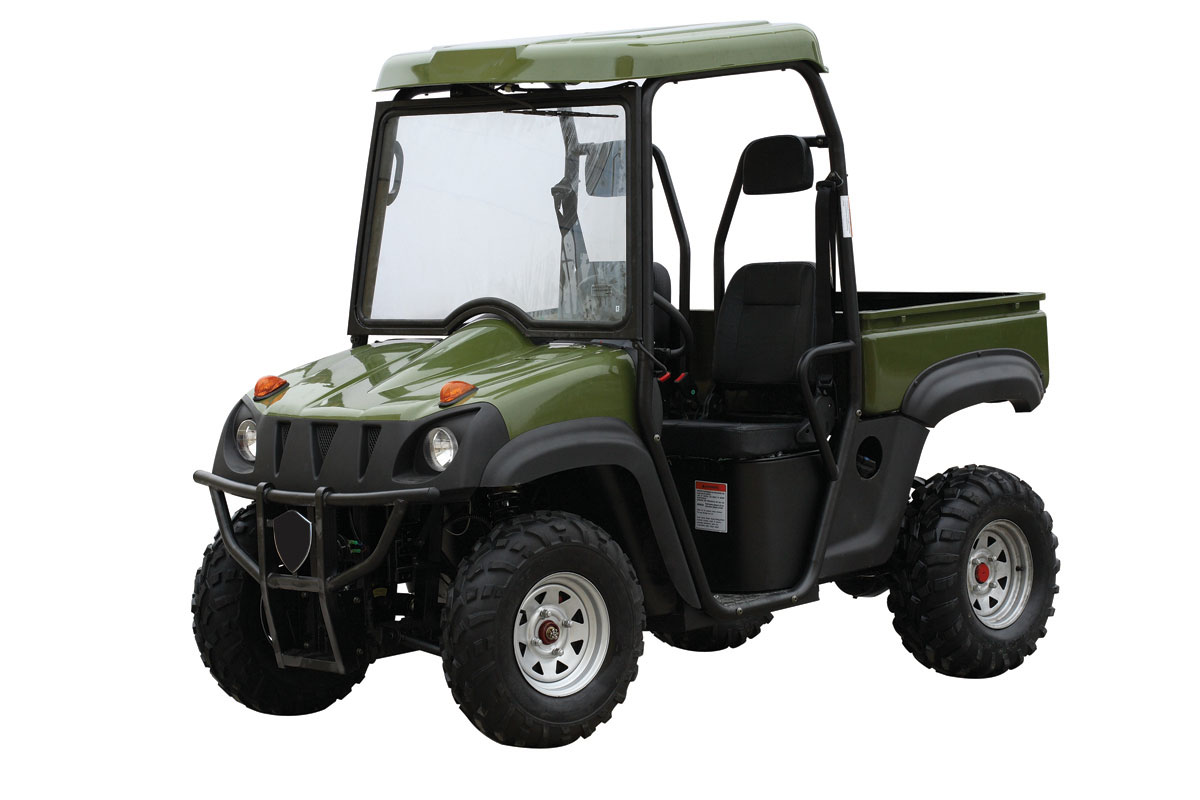

Also Available our NEW!!300cc XUV TwinSeater Farm UTE
$5990+ Shipping
